Thermal Pads are a must have and an easy replacement for the health of your N64! Opening the hood to do some deep cleaning or some mods, replace those pads while you are in there!

These pads are correctly sized and have significantly improved Thermal Conductivity over the originals. These new pads have a thermal conductivity of 18W/mk!

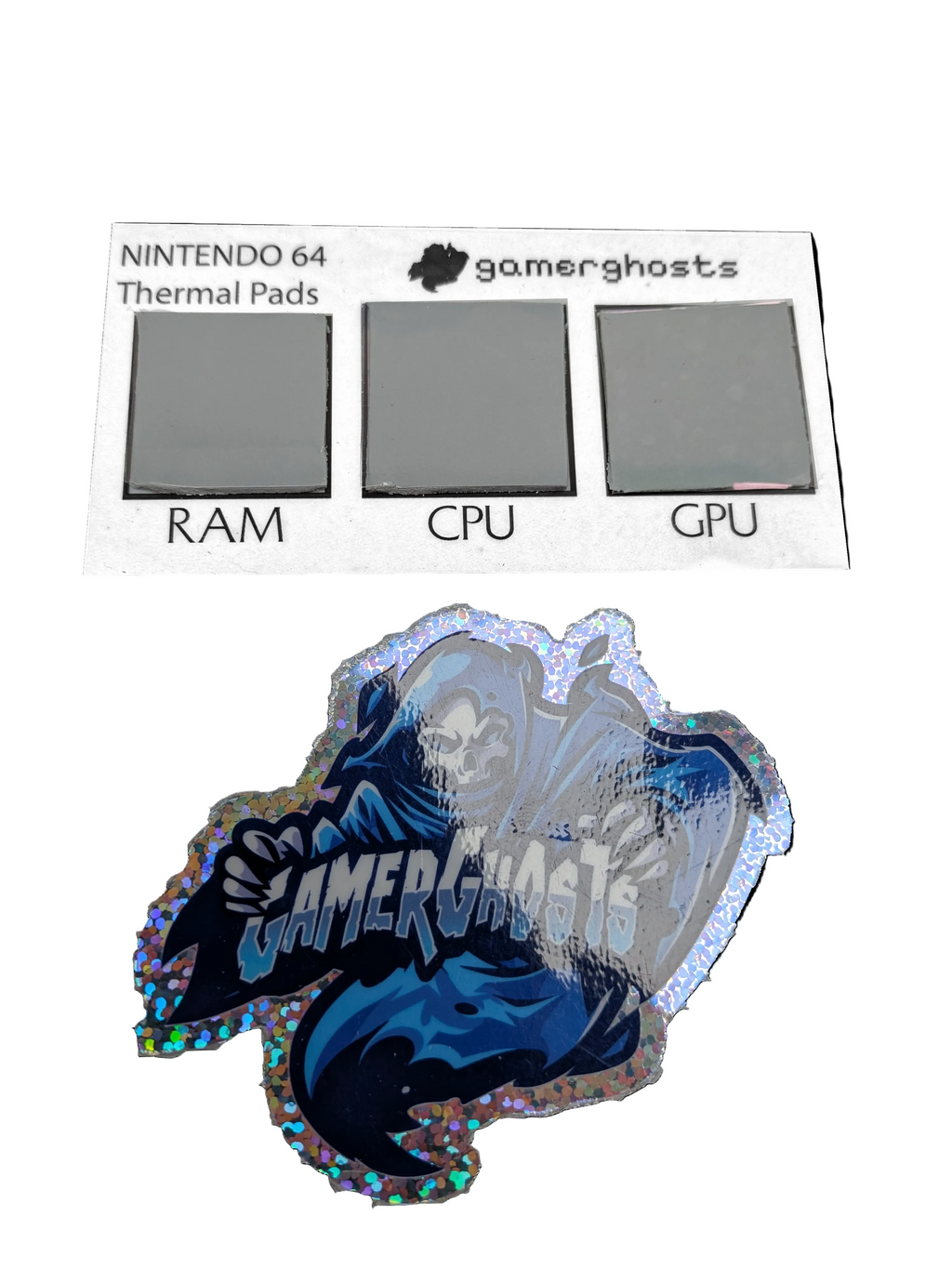

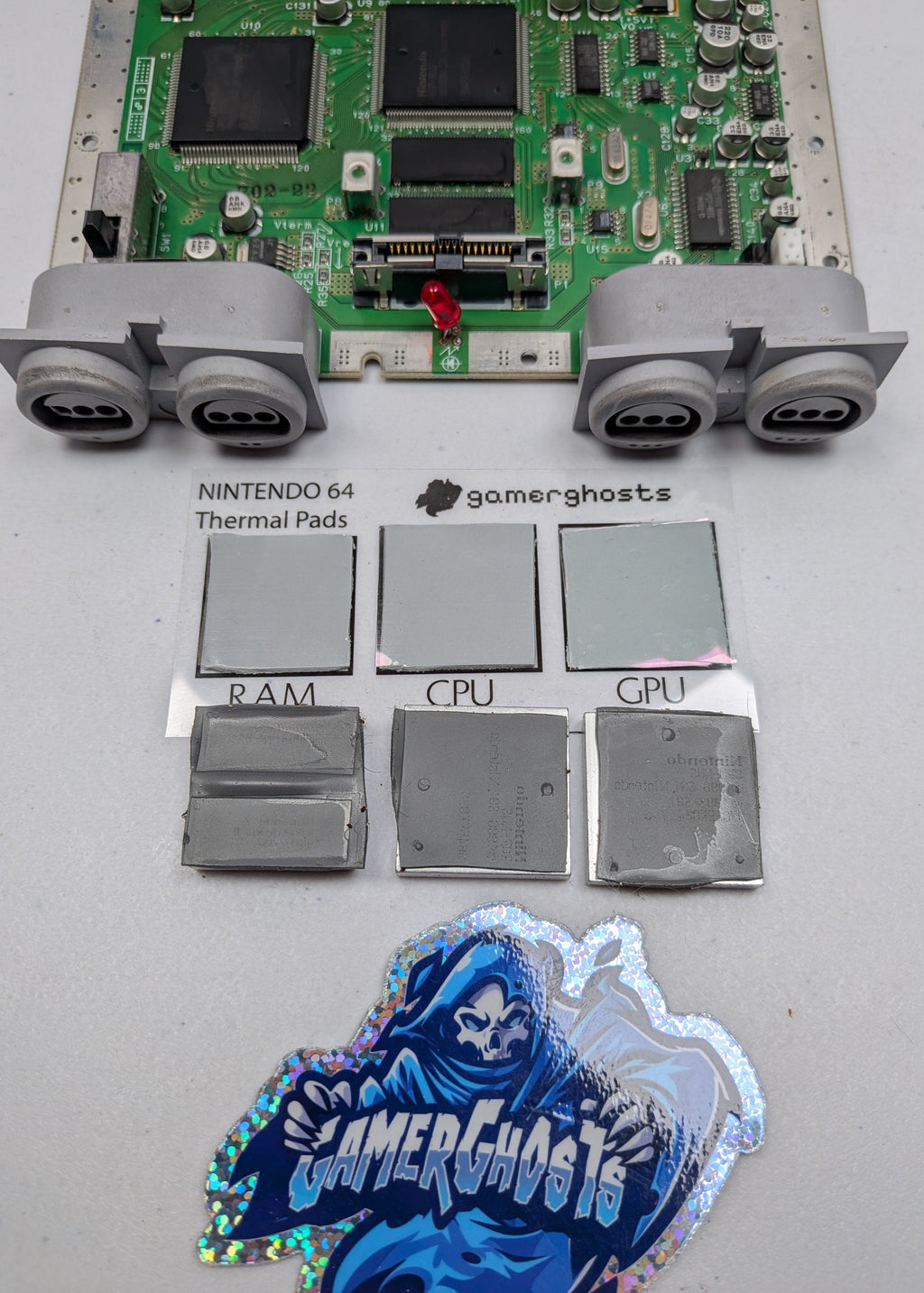

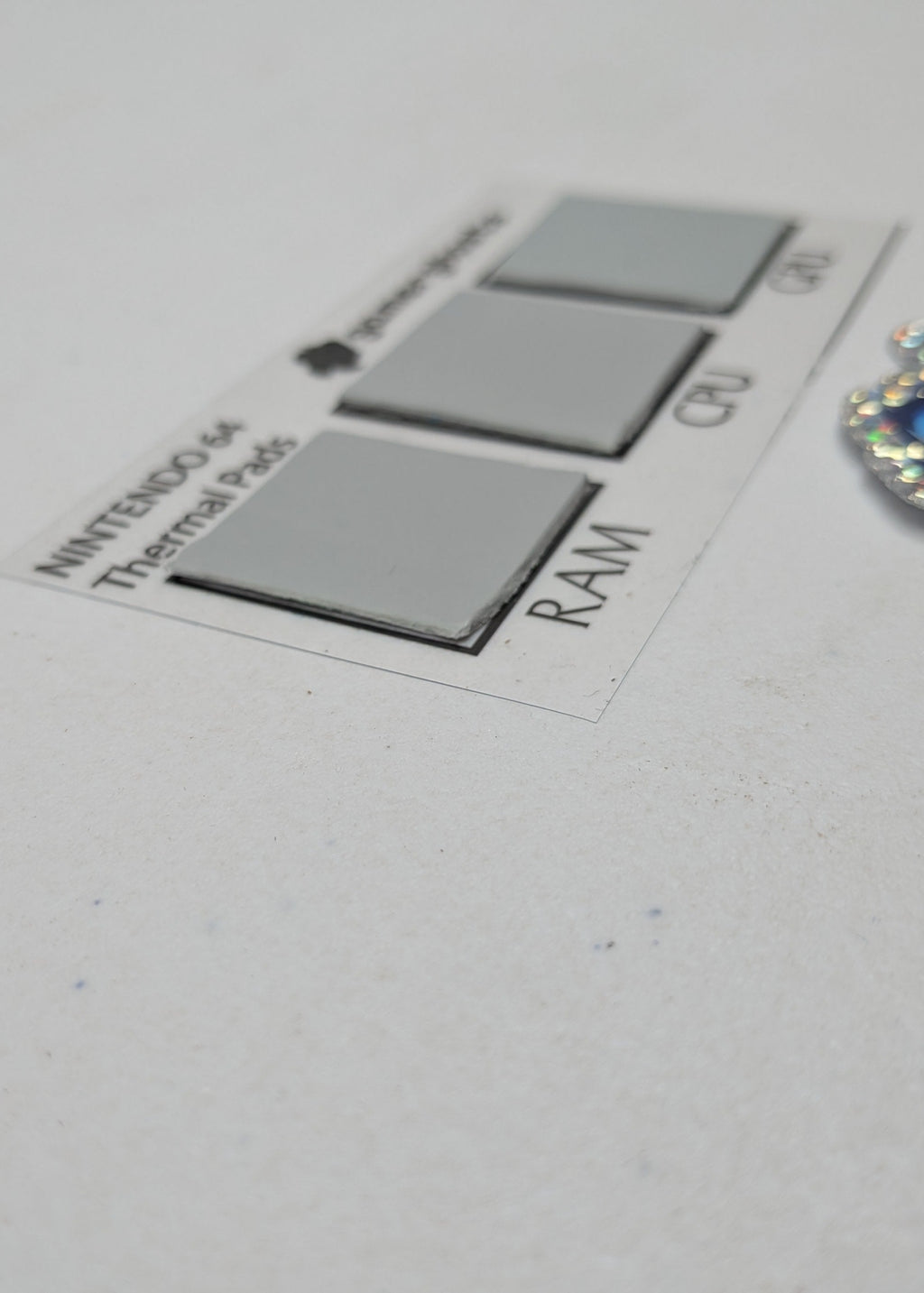

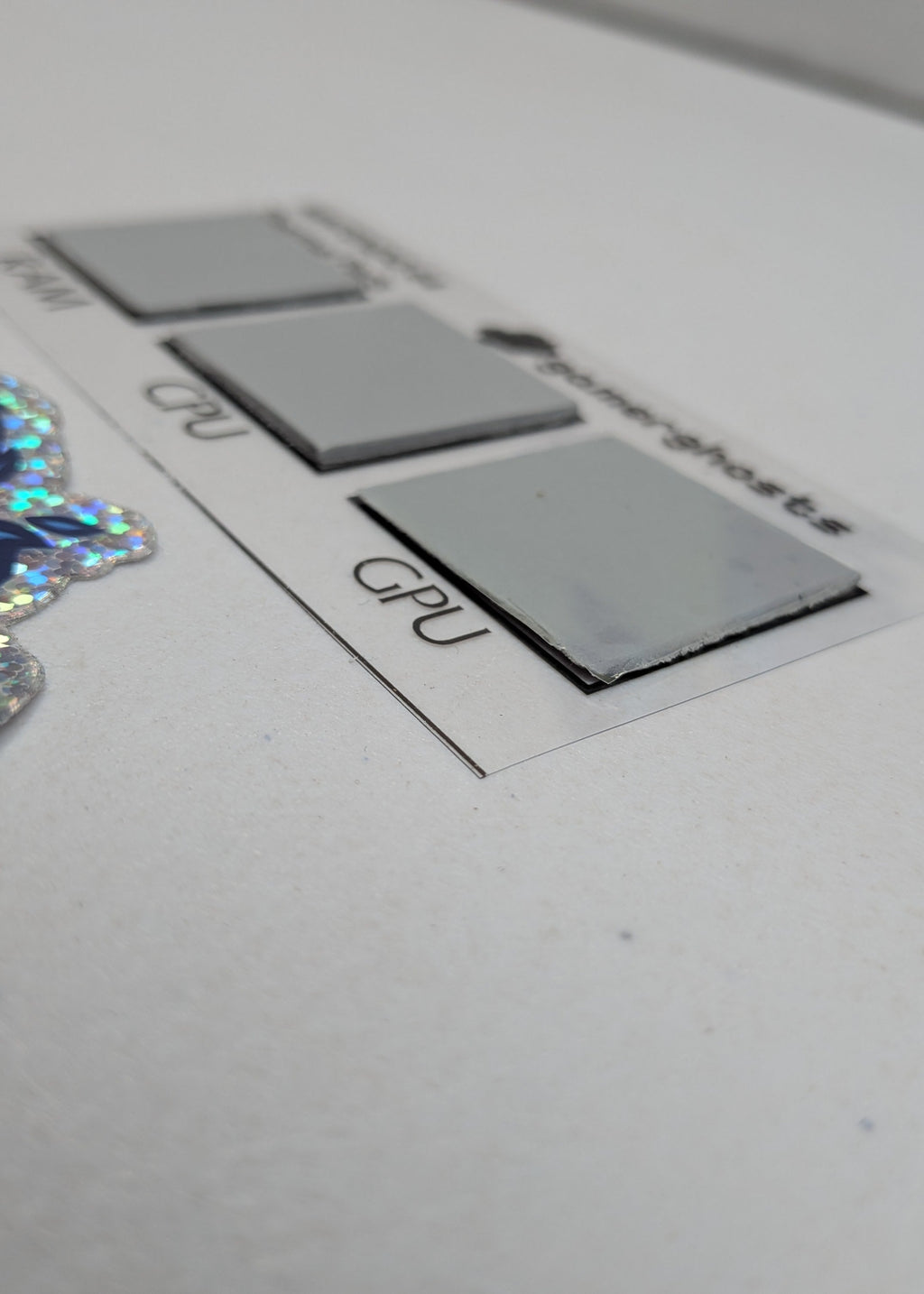

You will receive a thermal pad for the CPU, GPU and RAM (the pad going over both). Pads are 1mm in thickness in the original and you have the option of selectin the OEM size or the full heat sink size for even better conductivity.

Installation is easy:

1. Run the N64 a bit to warm up the existing pads.
2. Remove the screws from the bottom of the N64.
3. Remove the  screws holding down the top heat sink.
4. Carefully twist the heatsinks to remove them.
5. Remove the existing thermal pads and clean the surfaces of both the chips and the power components and heat sink.
6. Add the new pads in place where the old were.
7. Reassemble in reverse order!

Technical Specifications:
